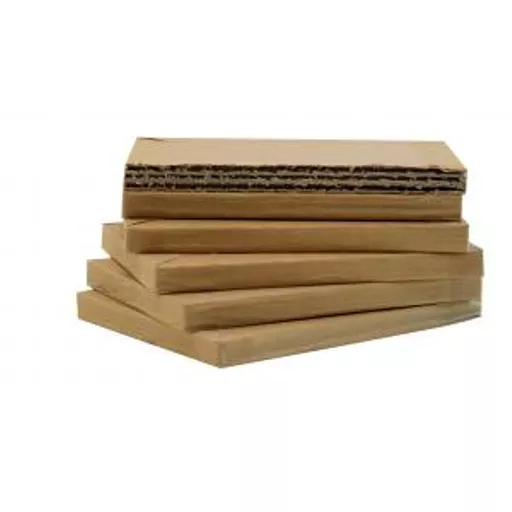

DBx Pro 10mm - High Performance Phonestar Soundproofing Boards

The 10mm Acoustic Db  board ( Phonestar Insulation Boards) on its own has been certified to reduce Airborne Sound by a very high 26 Decibels (Rw,-4Ctr) .When the acoustic plasterboard is then added to a wall, floor or ceiling structure, the overall Airborne Sound Insulation result of the complete structure will be much higher.

The Acoustic DB boards ( Phonestar Insulation Boards) reduces Impact Sound by a very significant 19dB(;Lw)  when laid on the industry standard concrete test floor. The overall impact sound insulation result of the complete floor and ceiling structure can also be tested and this laboratory result in Decibels is denoted by Ln,w. Please note that when comparing Impact Sound Insulation results of the complete floor structure, the lower the result the better the reduction in impact sound.

Benefits:

• Extremely versatile soundproofing board for walls, floors and ceilings and most soundproofing applications
• Significant reduction in both impact and airborne noise
• Only 10mm thick, so minimal space loss to any area
• Part E compliant
• Natural , breathable product
• Excellent with underfloor-heating
• Leaves a solid floor finish ready after installation

Product Specifications:

• 1200mm x 800mm x 10mm (15kg/m2)

Performance:

• 26dB (Rw, -4Ctr) Airborne sound insulation
• 19dB (Delta Lw) Impact sound insulation

​*manufacture tested data
